Rudi Pham

Project manager with architectural & retail design experience. From Norway, based in Brooklyn, NY.

I'm currently open for work

Project

Interior Development

Year

2017

What

Part 2 - In progress

Interior development part 1

April:

After completing the shop drawings and collecting a couple of fabricator quotes I decided that I might as well produce the coffee table frame myself. After a quick search I found a workshop with all the tools required - which is part of the reason why I am now a proud member of Staten Island Maker Space! (and because I got a cool welding helmet for my birthday)

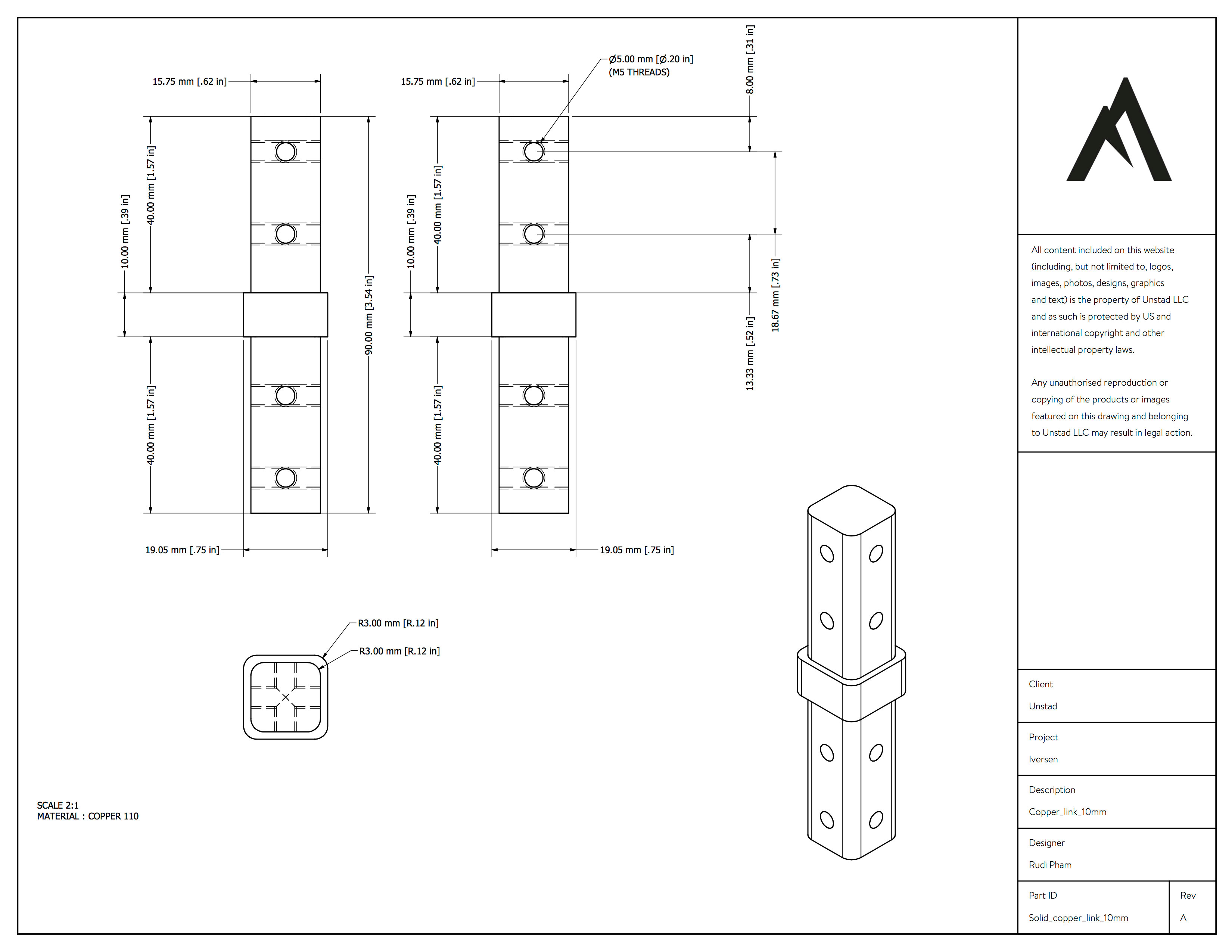

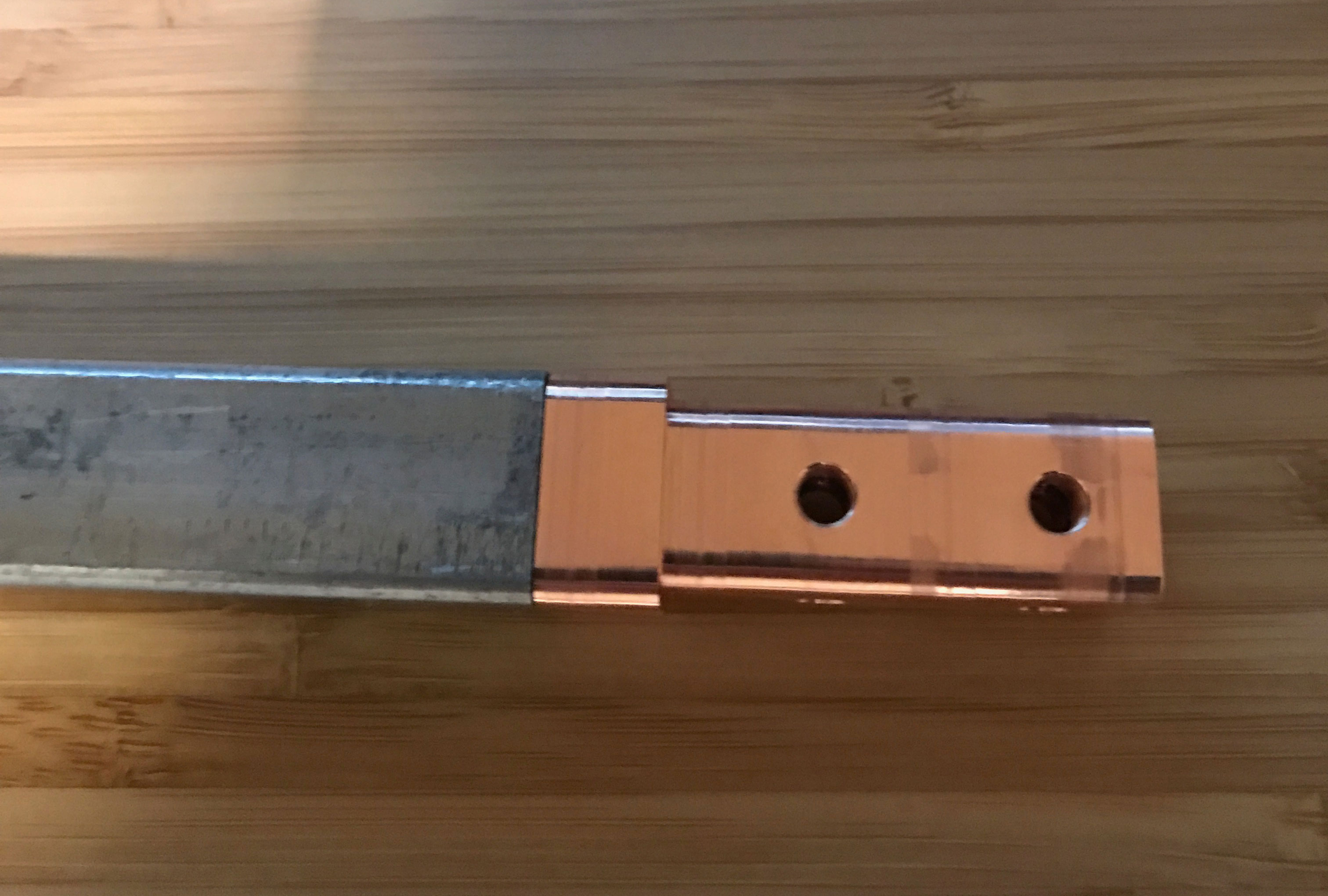

I always prefer to address the most challenging part of the design first and with this design it is definitely the copper links. The part below was machined out from a CNC mill and as you can see below.

Interior development part 1 Interior development part 1

May:

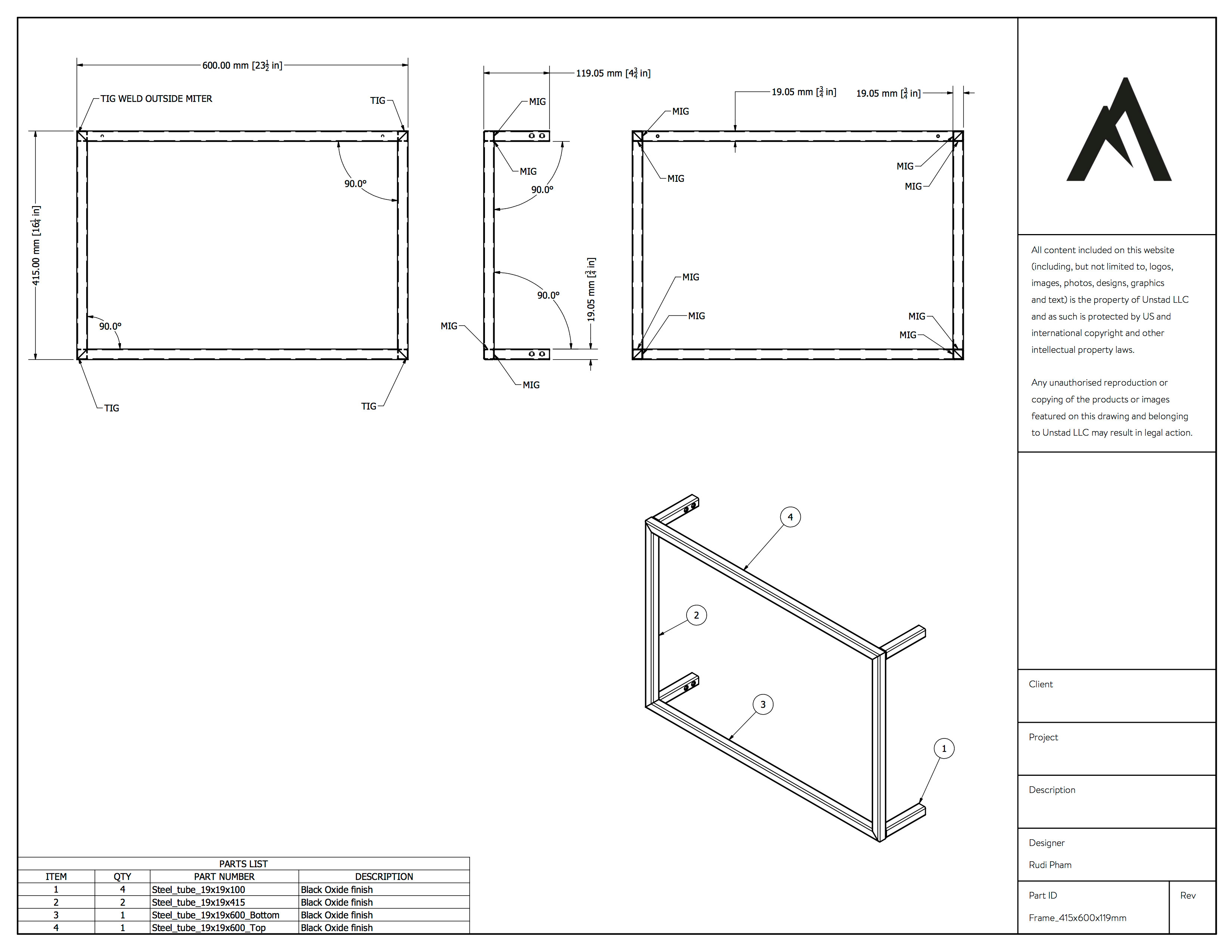

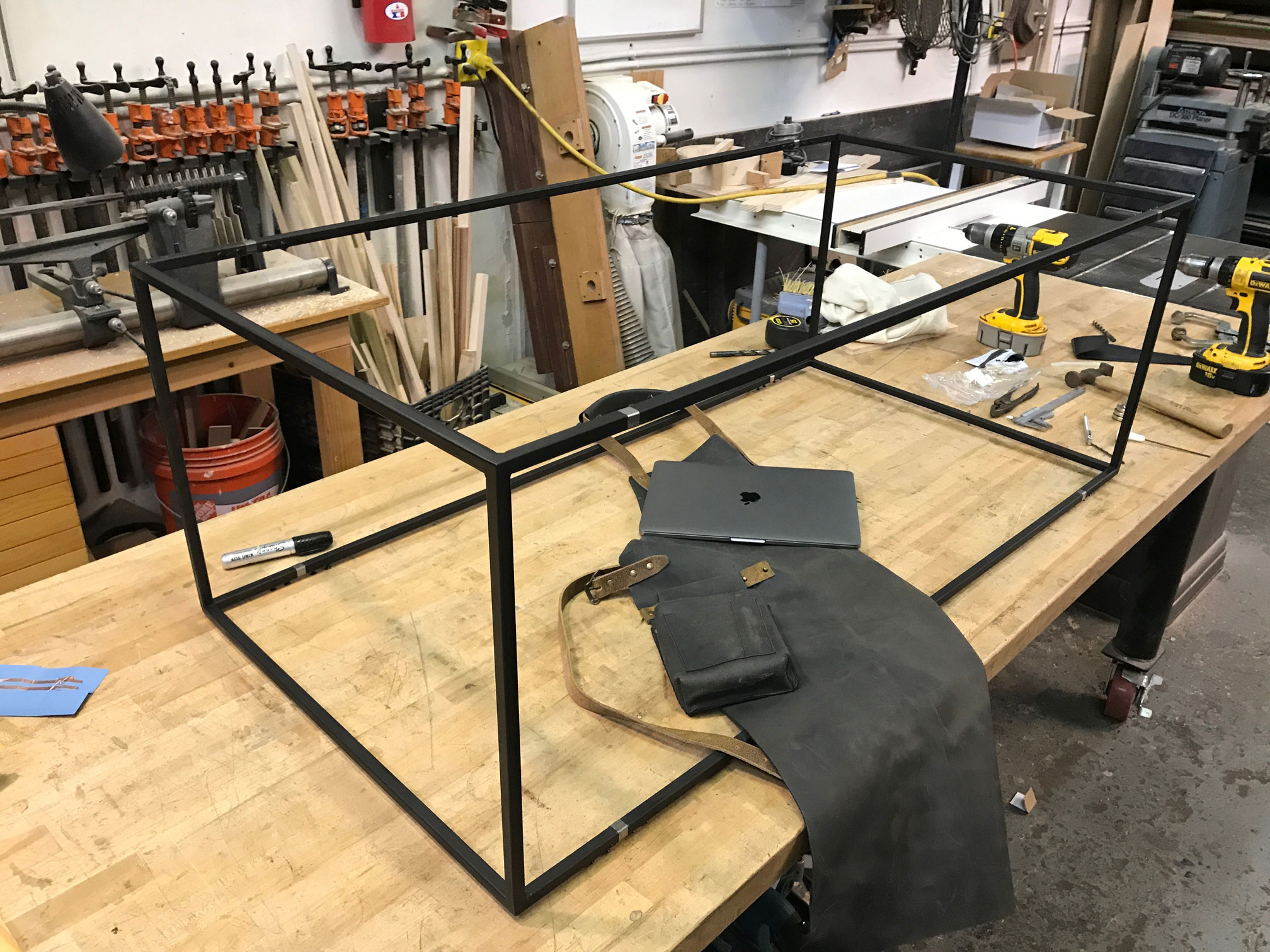

Next step was to order and patiently wait for the material before welding and, hopefully very little, grinding before applying the black oxide finish to the steel frame. BTW - I love my new apron from Stalwart there's no coincidence of why it's in all of my shots.

Interior development part 1 Interior development part 1

Next:

Next I will add the "shadow" bracket and develop the wool fabric - stay tuned!
